orinoco
(orinoco is one of the most versatile moving walks on the market today with an impressive array of design options, features and applications.)
orinoco link: https://www.tkelevator.com/us-en/products/moving-walks/orinoco/
Max Rise - 19'-8 1/4" (6 m) | 656' (200 m)'
Inclination - 0 to 6 | 10 | 12°
Pallet width - 32" (800 mm) | 40" (1000 mm) | 48" (1200 mm) | 55" (1400 mm) | 63" (1600 mm)
** Specifications
Max length | Rise - Up to 656'-2" (200 m)
Max capacity (people/hour) - 8200
Configuration - Pit
Inclination - 0° – 6° | 10° | 12°
Application - Commercial | Traffic
Step chain roller - Inside
Location handrail drive - Truss
Handrail shape - U-shape | V-shape
Climate conditions - Indoor | Outdoor
Nominal step width - 32" (800 mm) | 40" (1000 mm) | 48" (1200 mm) | 55" (1400 mm) | 63" (1600 mm)
Speed - 100 fpm (0.5 m/s) | 120 fpm (0.65 m/s) | 150 fpm (0.75 m/s)
Balustrade - Slim | Robust | Metal | Sandwich
Aesthetic lights - Balustrade | Skirt | Truss | Ambient cladding | Soffit cladding
Traffic lights - Floor plate | Decking | Newel | Column
Safety lights - Step gap | Comb plate
Drive unit - Chain drive | Direct drive
Usage factor - 18 hours/day
Average life span - 25 years
orinoco’s versatile performance and exceptional quality are the result of our best-in-class engineering, advanced production systems and selected energy-efficiency features.
Key benefits
Increased connectivity

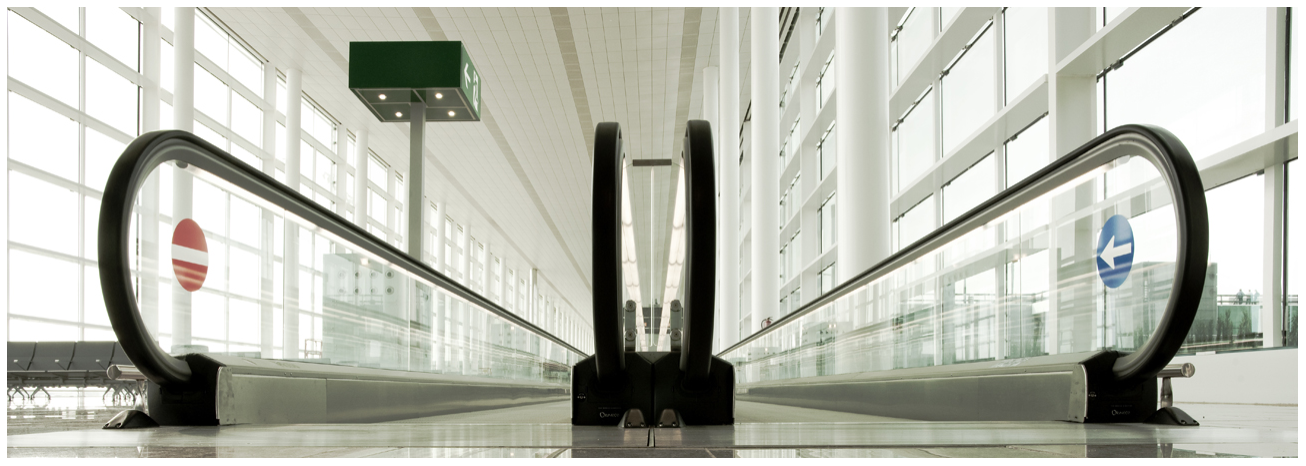

With orinoco, you cover longer distances. Traveling up to 656' (200 m), orinoco improves mobility and connections in airports and metro stations worldwide.
Greater comfort and more capacity

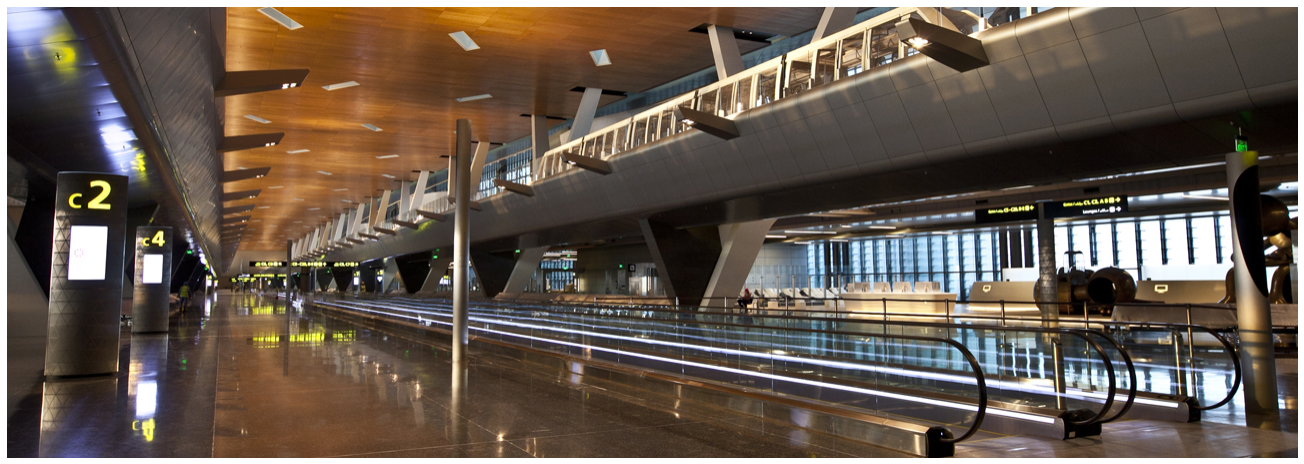

At airports and other crowded public spaces, orinoco’s unique 63 inches (1600 mm)-wide pallets raise the bar on safety, comfort and capacity.
Seamless safety

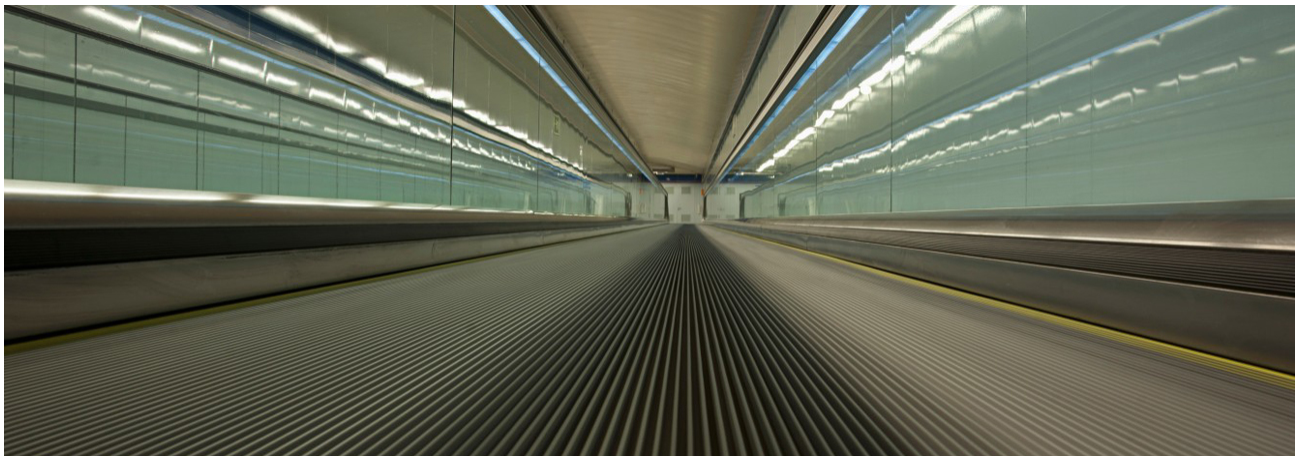

Its 16 inch (405 mm)-long pallets reduce pallet gaps, enhancing safety and providing a seamless look.
Spatially efficient
Combining upper and lower horizontal runs creates the perfect configuration to maximize both comfort and the use of space. orinoco’s compact truss also saves space.
Designed for versatility

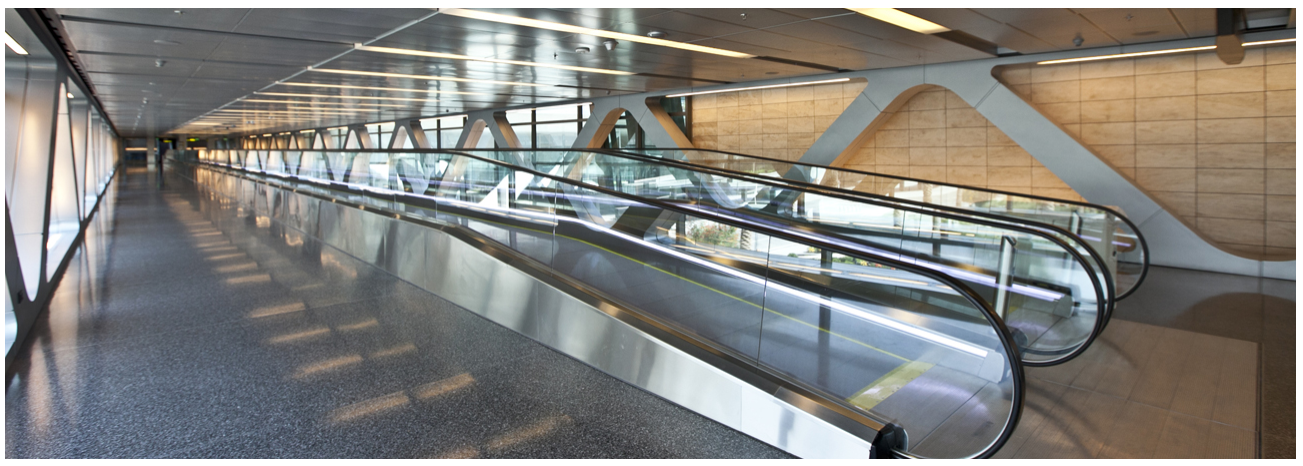

Whether it’s enhancing the architecture of airports, metro stations or retail environments, orinoco blends seamlessly into your building design. Its numerous design features and options enable it to fit in perfectly. orinoco creates an inviting atmosphere while leaving a lasting impression.
Ingenious engineering, exceptional quality
orinoco’s versatile performance and exceptional quality are the result of our best-in-class engineering, advanced production systems and selected energy-efficiency features.
**Guiding system: Fit to purpose
Precise engineering and flawless manufacturing are key to ensuring the highest ride quality. With orinoco’s superior guiding system, we ensure exceptional passenger comfort certified to ISO 18738-2.
*Precise guide rails
- Even pallet run
The guide rails are precisely aligned using best-in-class adjustment jigs to achieve a perfectly even pallet run for the highest ride comfort.
*Guiding rollers
- Reliable pallet run
The pallet tracks have vertical and horizontal guidance provisions to reduce wear and tear, noise levels and maintenance.
*Smooth run rails
- Jerk free pallet run
The rails enable a smooth transition of the pallet chain rollers from the guide rails to the pallet chain sprocket, eliminating the polygon effect throughout the moving walk and enhancing ride quality.
**Pallet fastening: Engineered to perform
Our unique fastening concept uses hollow axles that connect the pallets and chain using solid bolts. The result? Easier installation, operation and maintenance.
*Pallet bolts
- Convenient and failsafe
Connecting the pallets and chain with bolts makes assembly fool proof and disassembly a snap for maintenance.
*No pallet chain bridge
- Easier maintenance
The hollow bridge eliminates the need for a pallet chain axis, providing easy access to the inside of orinoco for maintenance.
*Oil caps
- Clean and safe pallets
Oil caps at the end of the hollow axle prevent oil from leaking and polluting the pallet tread, keeping pallets clean and safe.
**Operation: A focus on sustainability
*Energy efficiency class
- Highest energy efficiency Class A+++
Based on the ISO 25745-3 standard and depending on your final configuration, orinoco delivers the highest energy efficiency.
*Energy-saving options
- Up to 90% reduction in energy consumption
orinoco’s LED lighting cuts energy consumption by up to 90%. You can further reduce the moving walk’s CO2 footprint by opting for energy-saving sleep mode operation.
*ETA drive option
- Increased efficiency, reduced maintenance
With its 96% efficiency and lubrication lasting 40,000 hours, our ETA drive is good option for both you and the environment.

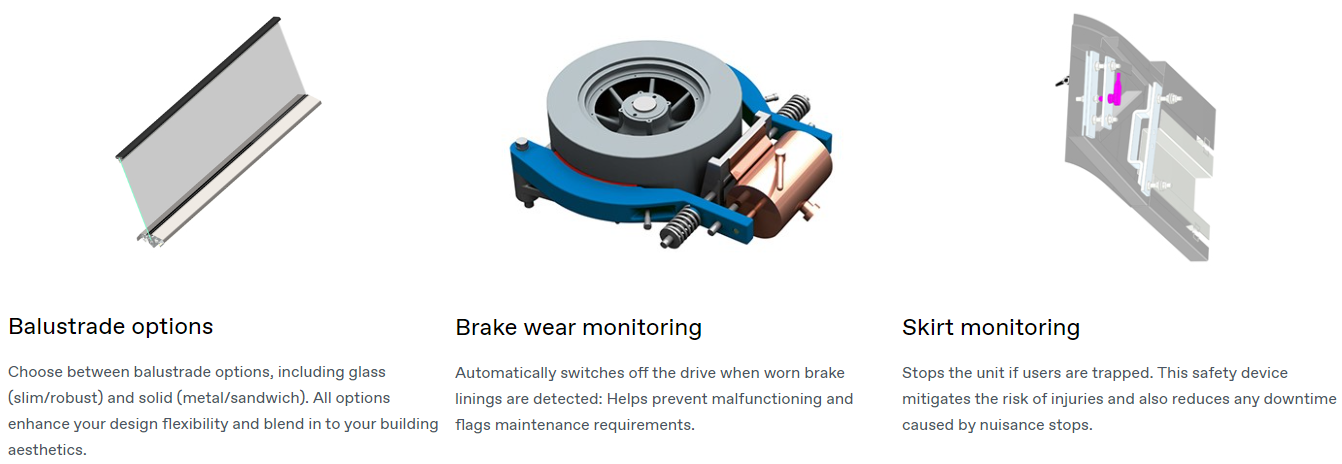

Strengthen your safety commitment
