iwalk
(The next-generation moving walk today)
iwalk link: https://www.tkelevator.com/us-en/products/moving-walks/iwalk/
Max Length - 328' (100 m)
Inclination (degrees) - 0-3
Pallet width - 44" (1100 mm) | 55" (1400 mm)
** Specifications
Max length | Rise - Up to 328' (100 m)
Max capacity (people/hour) - 7300
Configuration - Shallow pit | Pitless
Inclination - 0°-3°
Application - Commercial | Traffic
Step chain roller - N/A
Location handrail drive - Truss
Handrail shape - U-shape
Climate conditions - Indoor | Outdoor
Nominal step width - 44" (1100 mm) | 55" (1400 mm)
Speed - 100 fpm (0.5 m/s) | 120 fpm (0.65 m/s)
Balustrade - Slim
Aesthetic lights - Balustrade | Skirt
Traffic lights - Floor plate | Front skirt | Post
Safety lights - Step gap
Drive unit - Direct drive
Usage factor - 12-20 hours/day
Average life span - 15-20 years
By revolutionising the way moving walks are designed, manufactured and installed, iwalk establishes a new industry benchmark. Its modular space-saving concept simplifies planning, integration and operation without compromising usability. For passengers traveling with luggage and carts, it offers greater safety and comfort. Fewer components and low energy consumption complete this sustainable product’s ground-breaking engineering.
Key benefits
Easier planning

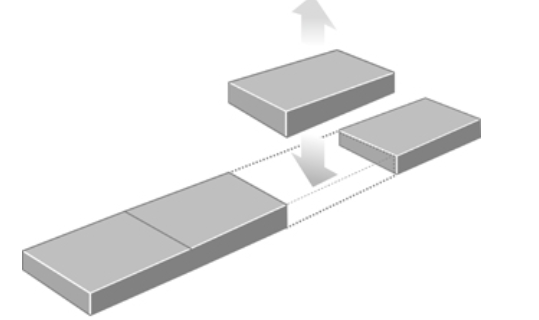

iwalk features standardized modules that are easily exchanged or replaced, making last minute changes a simple matter. Now even relocations are possible using just a forklift.
Easier on buildings

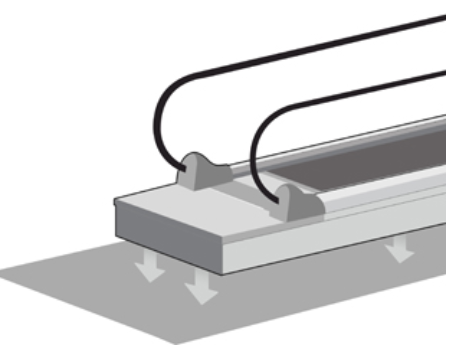

Compared to conventional moving walks, iwalk’s reduced outer dimensions and 30% lighter weight put less strain on your building, which means less reinforcement in the architecture.
Easier integration
Choose between two configurations: one with a shallow pit or a pitless version that you can place directly on your finished floor. The benefits are yours, from minimal to no extra public work, making iwalk ideal for any modernization or replacement project.
Easier for users

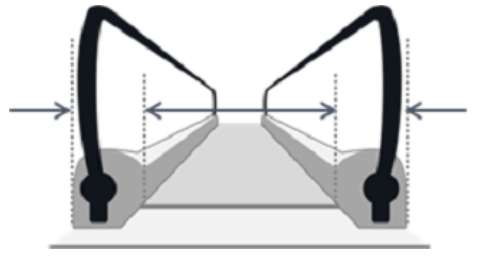

iwalk’s two different pallet widths – 44" (1100 mm) | 55" (1400 mm) – enhance passenger comfort while their reduced outer dimensions require less building space.
Easier on the environment

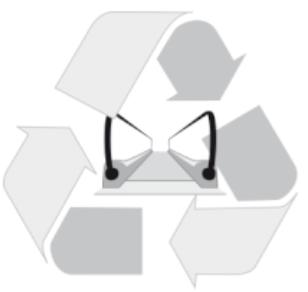

iwalk boasts an eco-friendly design. The reduced total weight and stackable modules minimize transportation volumes and the related emissions. Energy-saving features such as sleep mode operation and LED lighting enhance iwalk’s sustainability. So does the fact that, once this innovative product reaches the end of its service life, most of its parts can be recycled.
Beautifully functional
State-of-the-art design entails more than just aesthetics. It also involves superb functionality. We’ve designed iwalk from the ground up to boost your project’s aesthetics while giving you the functionality you’ve only dreamed of.
modularity. flexibility. possibility.
*Modularity
*Easy transportation
iwalk’s stackable modules reduce the space needed for transportation. Now even plane shipments are possible.
*Flexibility
*Easy handling

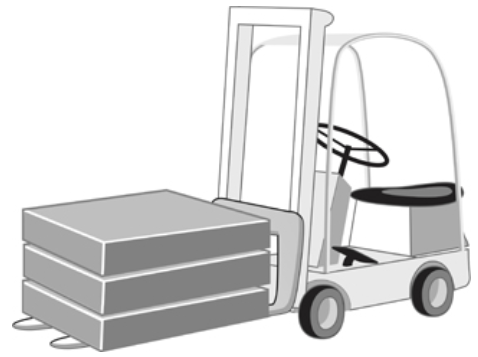

Its modules’ light weight and small size facilitate handling, eliminating the need for cranes – a forklift will do.
*Possibility
*Easy installation
Last-minute installations or relocations are now possible. The modules can be transported by elevator while a smart connection system accelerates installation.
smart. shallow. guiding.
*Cold rolled profile
*Reduced truss height
iwalk’s cold rolled profile combines the truss and guiding system, saving space by significantly trimming the truss’s height.
*Guiding truss
*Reduced wear and tear
Combining the truss and guiding system also decreases wear and tear on parts while increasing iwalk’s maintainability and durability.
environment. maintenance. operation.
*Pallet band
*Chainless concept
- Guiding rollers connect the pallets, eliminating the need for a chain and lubrication. Better for both the environment and maintenance.
*Pallet drive
*Safe and smooth ride
The pallets’ guiding rollers cleanly engage with driving roller wheels at the main shaft to deliver a safe, smooth and quiet ride.
*Power transmission
*No lubrication needed
iwalk’s advanced power transmission eliminates the need for lubrication thanks to the use of direct drive.
*Energy efficiency class
*Highest energy efficiency
Based on the ISO 25745-3 standard and depending on the configuration you choose, iwalk enables you to achieve the highest possible energy efficiency.

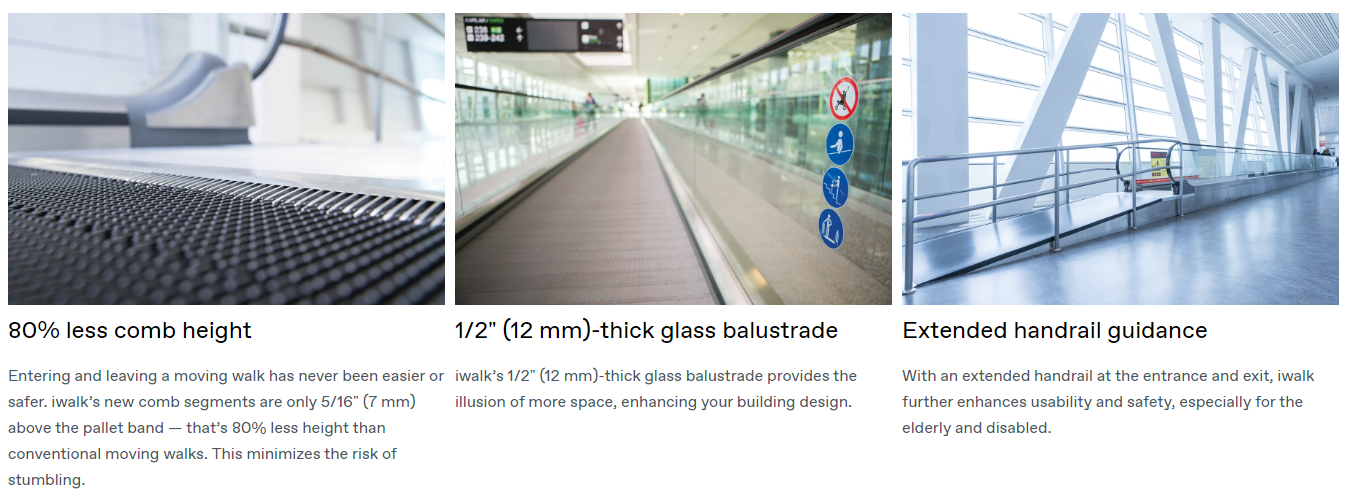

Enhanced passenger safety
