victoria
victoria Link: https://www.tkelevator.com/us-en/products/escalators/victoria/
Max rise - 164' (50 m)
Inclination (degrees) - 27.3 | 30
Step width - 24'' (600 mm) | 32'' (800 mm) | 40'' (1000 mm)
** Specifications
Rise - Up to 164' (50 m)
Max capacity - 6,000
Step load - Rated for 320 lbs/step
Inclination - 27.3° or 30°
Application - Transit duty
Step chain roller - Outside
Location handrail drive - Truss | Newel
Handrail shape - U-shape | V-shape
Climate conditions - Indoor | Outdoor
Nominal step width - 24" (600 mm) | 32" (800 mm) | 40" (1000 mm)
Speed - 100 fpm (0.5 m/s)
Flat steps - 2 (minimum per code), 3 or 4 (optional upon request)
Balustrade - Robust | Metal
Aesthetic lights - Balustrade | Skirt | Truss | Ambient cladding | Soffit cladding
Traffic lights - Floor plate | Decking | (Glass) Newel (high deck balustrade) | Post
Safety lights - Step gap | Comb plate
Drive unit - Chain drive | Direct drive
Usage factor - 20–24 hours/day
Average life span - 30 years
High-traffic areas require powerful mobility solutions – solutions like victoria, our most rugged escalator. It rises to the challenge of your most demanding project, whether indoors or outdoors, consistently delivering a stellar performance around the clock. From its impressive travel heights, transition radii and many other safety- and comfort-enhancing features, victoria never lets you down.
victoria. Power in motion.
Key benefits
Incredible reach
victoria excels in the most challenging modern urban environments. With an impressive maximum travel height of 164 feet (50 meters), victoria safely and easily transports people to the deepest metro stations and highest atriums or platforms.
Smoothest ride quality
victoria’s approximately 101-millimetre chain pitch minimizes the polygon effect and ensures the smoothest ride quality. Its powerful step chain rollers can be replaced individually, reducing both your maintenance and costs.
Built to last
victoria’s heavy-duty components, including its skirts, decking and handrail tracks, are made of stainless steel. This enables victoria to easily handle heavy loads in any climate.
Greater efficiency
Heavy-duty environments and high rises stress an escalator’s handrail. Positioning victoria’s handrail drive in the newel, combined with its V-shaped handrail, improves both the traction and efficiency as well as increases the component’s lifespan.

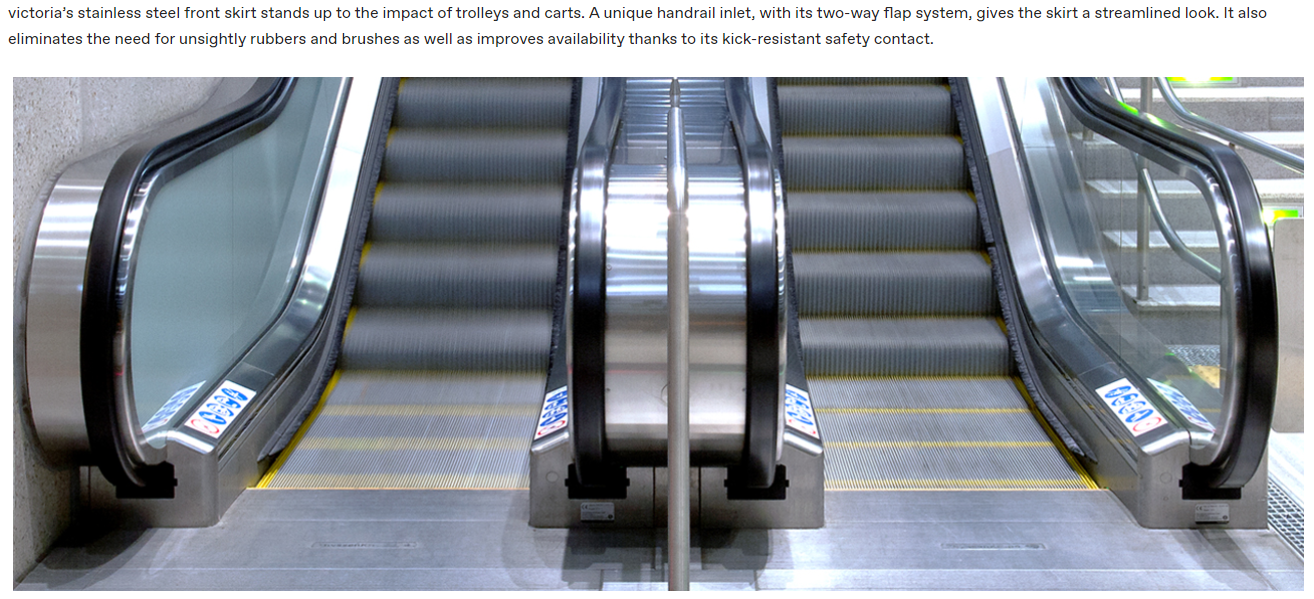

Unique front skirt

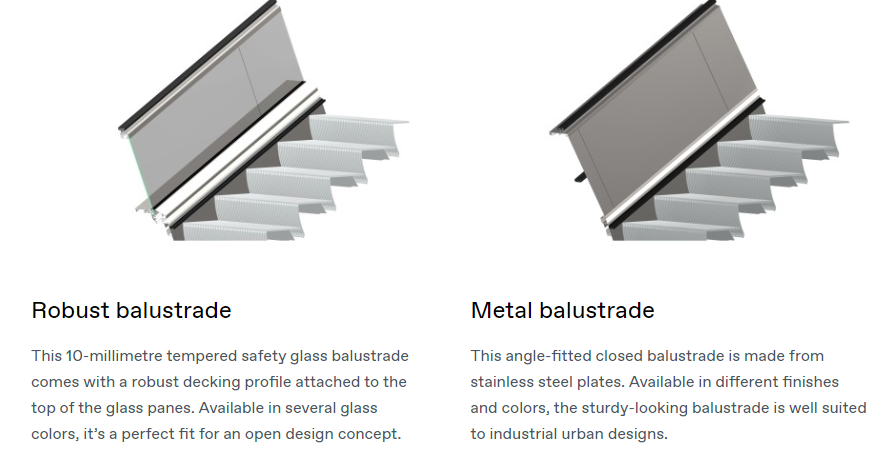

Distinctive balustrades

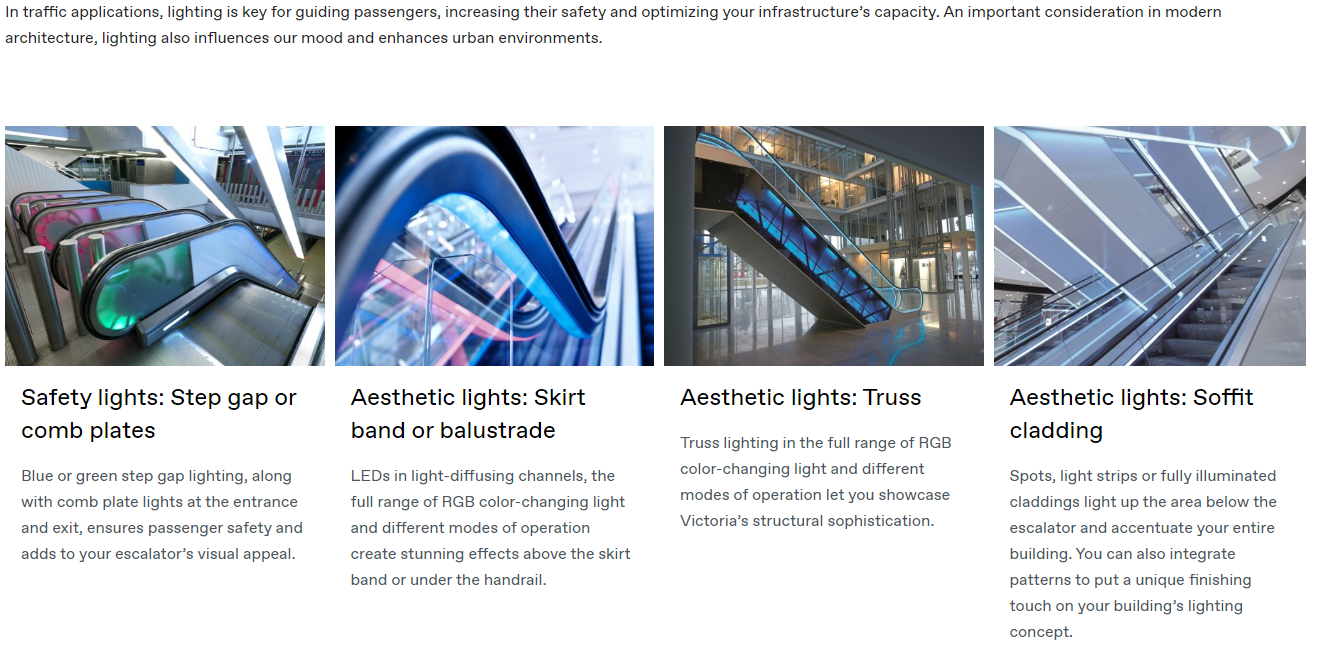

Striking lights

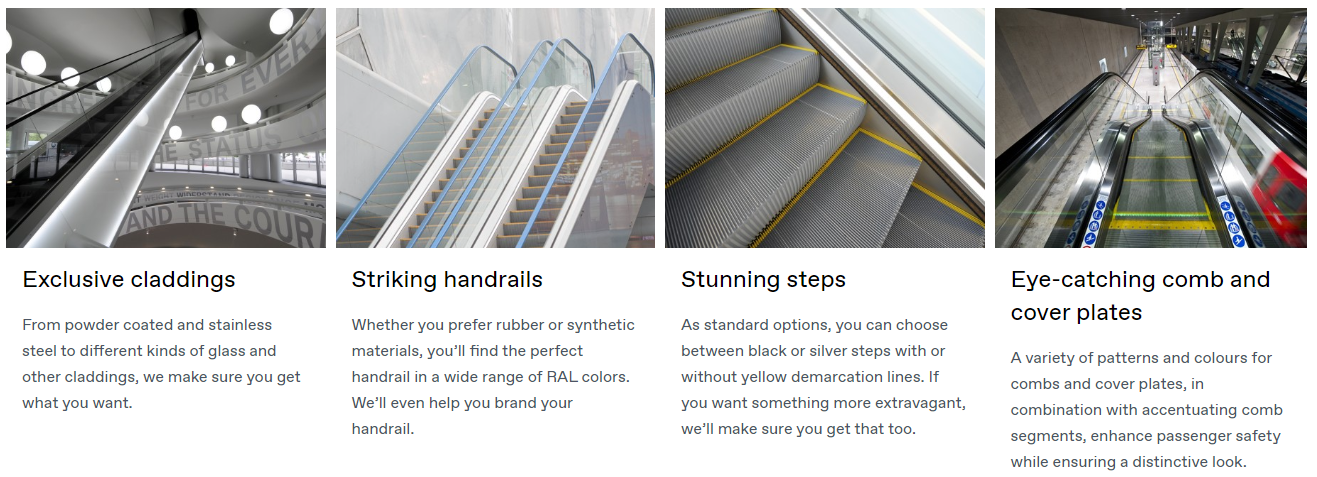

Highly customizable

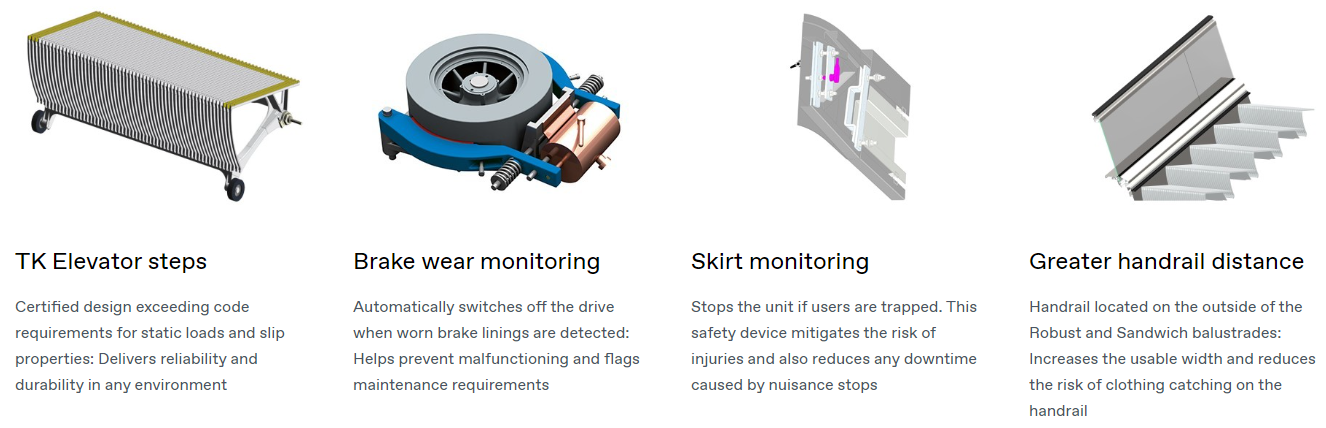

Powerful details, exceptional product quality
victoria’s powerful performance is the result of meticulous engineering, select features and refined components. Carefully crafted and manufactured using our advanced production systems, victoria delivers both an amazing product experience and a sustainable return on your investment.
Handrail drive: Conveniently located
victoria’s handrail drive can be located in the newel outside of the supporting structure, an indispensable option for higher heights that offers multiple benefits.
Easy access
Great maintainability
The handrail drive is readily accessed for maintenance without needing to remove any steps. As a result, the chain is easily adjusted through a sprocket and the handrail is tensioned via a compression spring.
Less handrail bending
Great durability
Having the handrail drive in the newel reduces handrail bending, thanks to the large guiding radii, and increases the component’s life expectancy.
Simple handrail exchange
Optimal availability
When the handrail reaches its end of life, it’s rapidly replaced within the balustrade using a lock, ensuring minimal downtime.
Step chain: Tough on the outside
The high-precision rolled flat link hardened chains are specifically manufactured for our escalators and come with different breaking loads to ensure stability under any condition.
Step chain pitch
Excellent ride quality
victoria’s approximately four-inch (101 mm) chain pitch enables the chain to slide smoothly on our best-in-class track system, minimising the polygon effect for the best possible ride quality.
Even traction on rollers
Reduced wear and tear
Locating the step chain rollers outside of the step chain means that the traction is more evenly distributed and the lifespan of each roller significantly increased.
Outside roller
Quicker roller exchanges
In the unlikely event that a roller needs to be changed, each roller can be replaced individually without opening the chain, keeping any downtime to a minimum.
Sustainable performance, day in, day out
We strive to continuously improve our escalators’ performance and sustainability. This includes increasing our operational efficiency while reducing the resources and materials we use as well as the waste we produce.
Energy efficiency class
Highest energy efficiency Class A+++
Based on the ISO 25745-3 standard and depending on your final configuration, victoria delivers the highest energy efficiency.
Energy-saving features
Up to 90% reduction in energy consumption
victoria’s LED lighting cuts energy consumption by up to 90%. You can further reduce the escalator’s CO2 footprint by opting for energy-saving sleep mode operation.
Latest motor technology
Premium efficiency motors
Our state-of-the-art premium efficiency motors reduce power consumption, have longer lifespans and minimise maintenance.
ETA drive option
Increased efficiency, reduced maintenance
With its 96% efficiency and lubrication lasting 40,000 hours, our ETA drive is good option for both you and the environment.
Direct drive
Great lifespan and maintainability
With its pre-oiled gearbox, our chainless spur gear drive option is quiet and durable as well as eliminates any chain-related maintenance.
