tugela
(Highly versatile, durable dependable escalator)
tugela Link: https://www.tkelevator.com/us-en/products/escalators/tugela/
Max rise - 72' (22m)
Inclination (degrees) - 27.3 l 30
Step width - 24" (600 mm) l
32" (800 mm) l
40" (1000 mm)
**Specifications
Rise - Up to 72'-2" (22 m)
Max capacity (people/hour) - 6,000
Step load - Rated for 265 lbs/step
Inclination - 27.3° or 30°
Application - High traffic, heavy duty
Step chain roller - Inside
Location handrail drive - Truss
Handrail hsape - U-shape l V-shape
Climate conditions - Indoor l Outdoor
Nominal step width - 24" (600 mm) | 32" (800 mm) | 40" (1000 mm)
Speed - 100 fpm (0.5 m/s)
Flat steps - 2 (minimum per code) or 3 (optional upon request)
Balustrade - Robust | Metal
Aesthetic lights - Balustrade | Skirt | Truss | Ambient cladding | Soffit cladding
Traffic lights - Floor plate | Decking | Newel | Column
Safety lights - Step gap | Comb plate
Drive unit - Chain drive | Direct drive
Usage factor - 20–24 hours/day
Average life span - 25 years
** We reserve the right to make technical modifications to our products at any time and exclude all liability. Shown thresholds depend on configuration details and may vary in individual cases. Availability of options and features also depends on individual configurations. Illustrations aid the general understanding and may differ from the actual design.
Highly Versatile
tugela gets the job done, indoors or outdoors, extreme heat or extreme cold, during the highest traffic volumes.
The higher the passenger volumes, the happier our tugela escalator. tugela safely moves people in high-traffic areas and all types of climates around the globe. Dependable technology and components, such as our certified brake system, make this escalator an exceptionally reliable partner.
tugela. Ruggedly reliable.
Stunningly tough

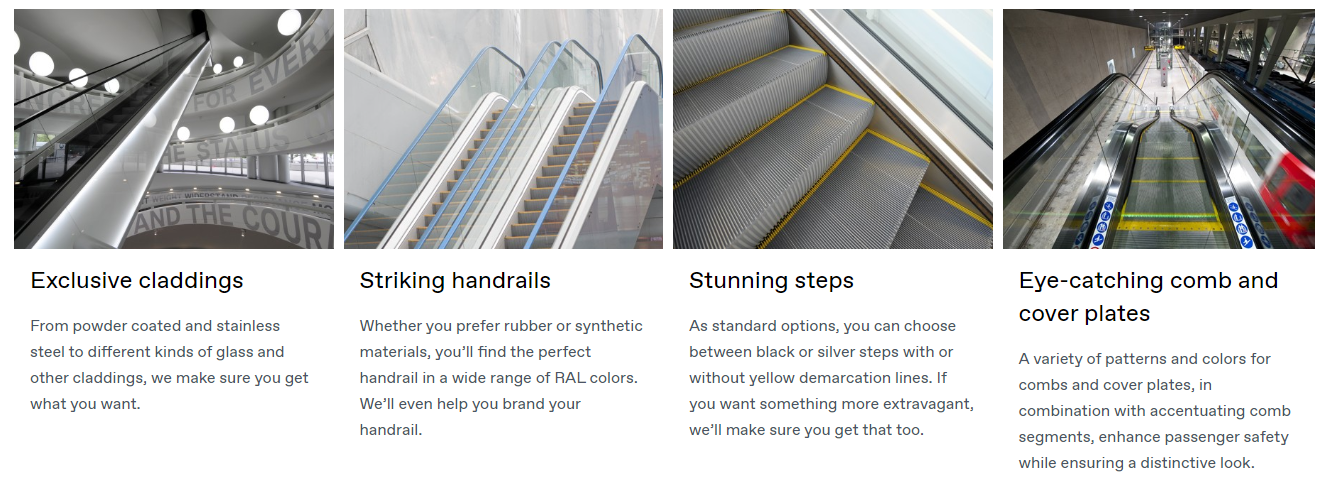

tugela is designed to meet the demands of traffic applications. It scores high on durability and long-lasting looks. A wide range of customizable design options, including various outer claddings and handrail colors, let you take the appearance of your installation to new heights.
Design:

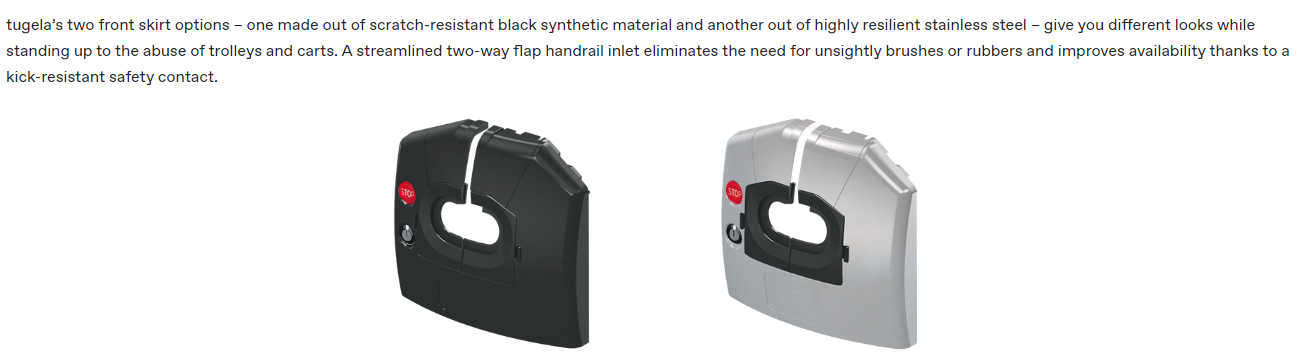

Unique front skirt

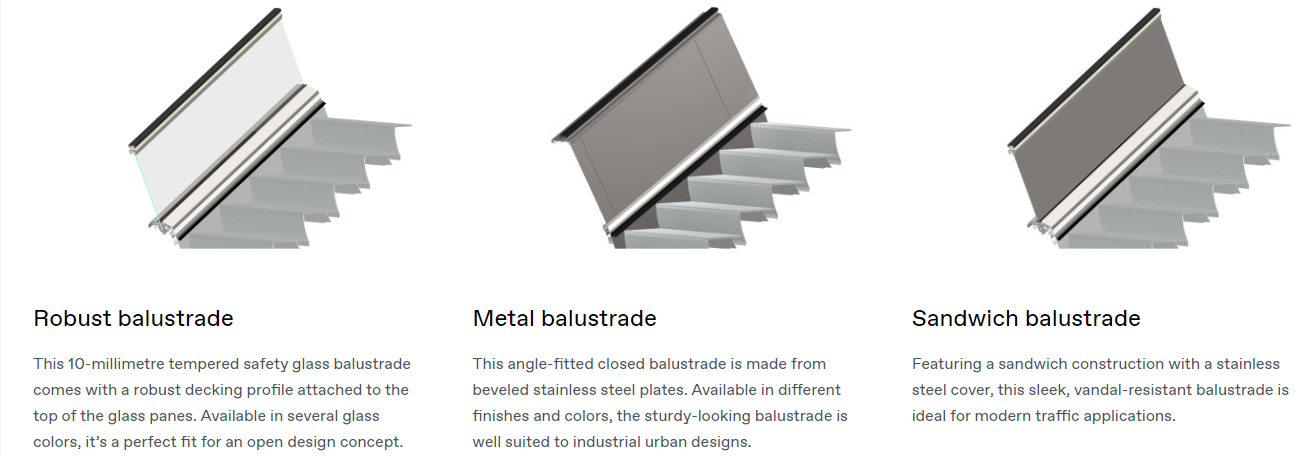

Distinctive balustrades

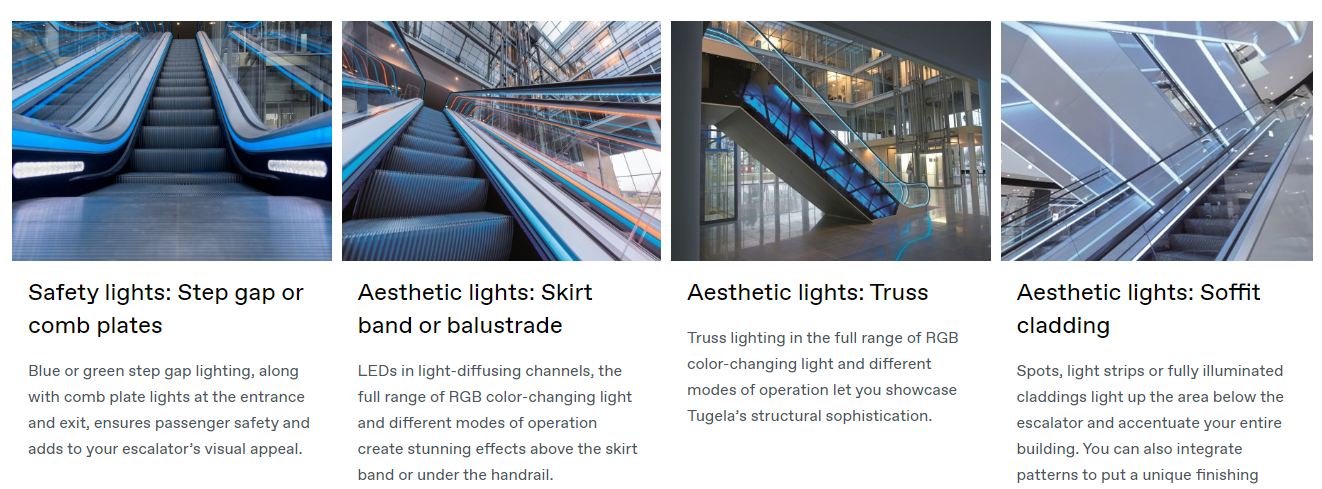

Striking lights
Highly customizable

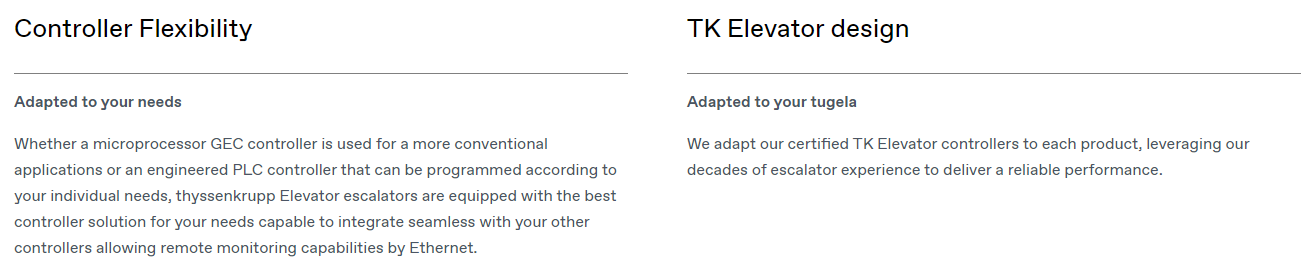

Performance on command

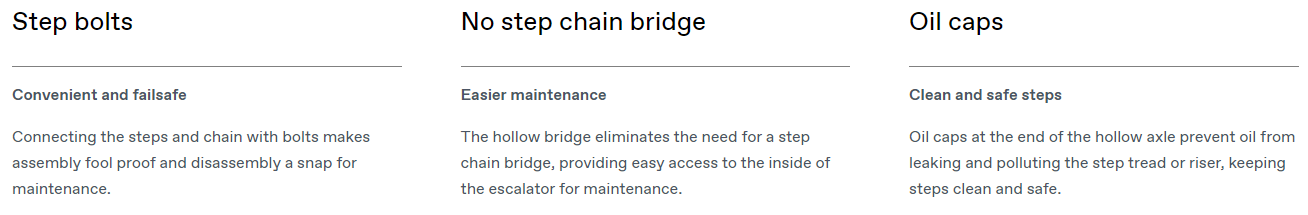

Step fastening: Engineered to perform

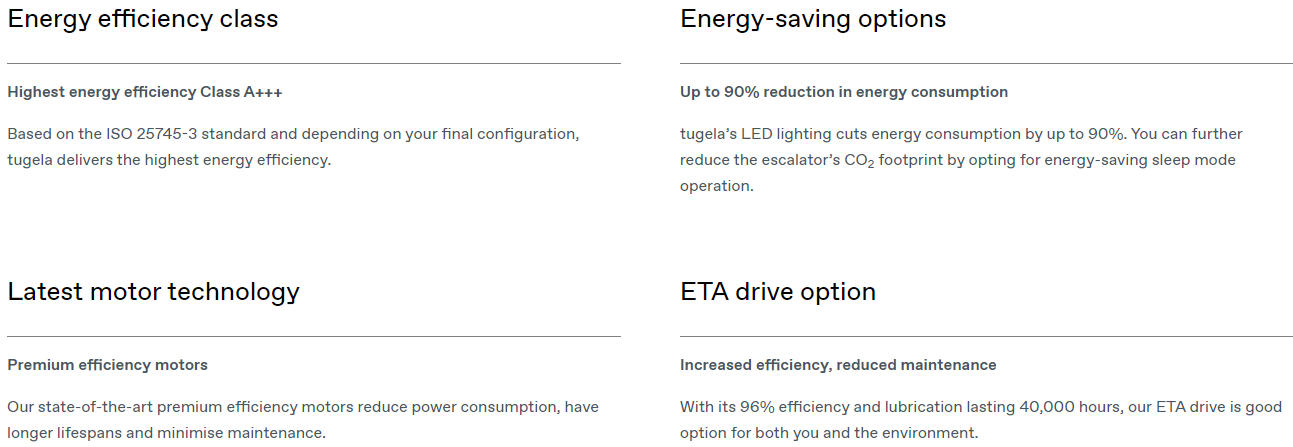

Sustainable performance, day in, day out
